Get Started Building Low-Code Apps in Oracle Cloud with Oracle APEX Application Development (APEX Service)

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

Oracle APEX Application Development, also known as “APEX Service,” provides citizen and professional developers with a fully managed, low-code application development and deployment platform in Oracle Cloud Infrastructure. You not only get Oracle APEX, but also an underlying Oracle Autonomous Database - Shared Infrastructure (ADB) database. With APEX Service, you can create powerful apps quickly and easily right in your browser - no additional tools required.

This tutorial will help you get started using APEX Service. If you already have a service instance pre-provisioned and have received a welcome message in your email inbox, then skip down to the section titled Executing Instance Lifecycle Operations. Otherwise, it is recommended to follow this tutorial from the beginning. If you do not finish it, you can come back later and return to where you left-off using the links below.

Signing Into Oracle Cloud Infrastructure

First, you need to have an OCI tenancy and a user account to sign-in with. If you have this, go ahead and sign in now. If you do not have this, begin by following this blog post about signing up for a tenancy in Oracle Cloud Free Tier. Return here once you able to sign in and see the OCI Console homepage (pictured below).


Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

Creating an APEX Service Instance


At the top left corner of the OCI Console homepage, click the hamburger icon to open the OCI Service Navigation Menu. Scroll down in this menu until you see a service category named Database Related Services. Expand the category to see APEX Application Development > APEX Instances. This is your main entry point into APEX in OCI. Click on APEX Instances to proceed.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

You now enter into a new user experience that allows you to see APEX on any ADB-derived service, quickly create a new APEX Service instance, or directly launch into APEX or SQL Developer Web on a running instance. Below is an example where APEX already is running on two Always Free Autonomous Database instances, and there are no instances of APEX Service yet. Continue by clicking the button Create APEX Service. It is located right above the instances list.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

This displays the APEX Service instance creation dialog. Fill in the dialog as follows:
  1. Enter basic information:
    • Compartment - Choose a compartment within your OCI tenancy. You can use the default "root" compartment or change to a different compartment if needed.
    • Display Name - Enter a user-friendly name to help you easily identify the service instance. The display name does not have to be unique.
    • Database Name - Enter a name for the underlying database. It must consist of letters and numbers only. The maximum length is 14 characters. The same database name cannot be used for multiple Autonomous Databases in the same tenancy in the same region.
  2. Select service settings:
    • Database Version - Displays the available database version (e.g. 19c).
    • OCPU Count - Specify the number of OCPU cores for your database.
    • Storage (TB) - Specify the storage, in terabytes, you wish to make available to your database.
    • Auto Scaling - By default auto scaling is enabled to allow the system to automatically use up to three times more CPU and IO resources to meet workload demand. If you do not want to use auto scaling, then deselect this option to disable it.
  3. Create administrator credentials:
    • Username - The default database administrator username is ADMIN. This option is read-only and is not editable.
    • Password - Enter a password.
    • Confirm Password - Enter the password again.
    • Tip: Make a note of this credential. You will need the passowrd to sign into APEX Administration Services later.
  4. Choose network access:
    • Allow secure access from everywhere - Choose this to expose APEX Service on the public internet over HTTPS, with optional settings to restrict access to certain IP addresses, CIDR blocks, and Virtual Cloud Networks (VCN).
    • Virtual cloud network - Choose this to place APEX Service within a VCN and allow HTTPS access only from clients that are added to the same VCN.
Once you finish filling in the dialog, click Create APEX Service at the bottom to commence instance creation.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

You immediately are taken to an APEX-specific page that shows helpful details about your new APEX Service instance including its name, version information, and usage metrics. This is the same detail page you would see if you drilled into an APEX instance from the prior instances list screen. Notice that the state of your new APEX Service instance initially displays as Provisioning. After approximately 1-3 minutes, the state should change to Available.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

Soon after the state changes to Available, you will receive a welcome message in the email inbox of the administrator for the OCI tenancy. This message contains important information about your new APEX Service instance including direct links to its APEX Administration Services, APEX Application Development Services, and SQL Developer Web. It also contains a link to this tutorial.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

Executing Instance Lifecycle Operations


Now is a good time to learn about lifecycle operations for APEX Service instances. These operations include instance start, stop, and terminate - to name a few. They are useful for several reasons. For example, you may wish to stop a running QA instance while testing activities are paused, and then start it again when testing resumes. Or, you may need to terminate an instance after its APEX applications and data have been decommissioned and the instance is no longer needed. The most important thing you need to know is that these instance lifecycle operations are avilable only on the details page of the underlying database, and although they are invoked against the database, they apply to the whole APEX Service instance. Let's take a closer look.

If you are not already viewing the details page of the APEX Service instance that you created previously, first sign back into your OCI tenancy and navigate to this page. After it loads, locate the text Database that has a link adjacent to it. This link opens a details page for the database included with your APEX Service instance. Click it to proceed.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

Here you see the details page of the database. Notice helpful database information displayed here. For example, you can see the exact database version number.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

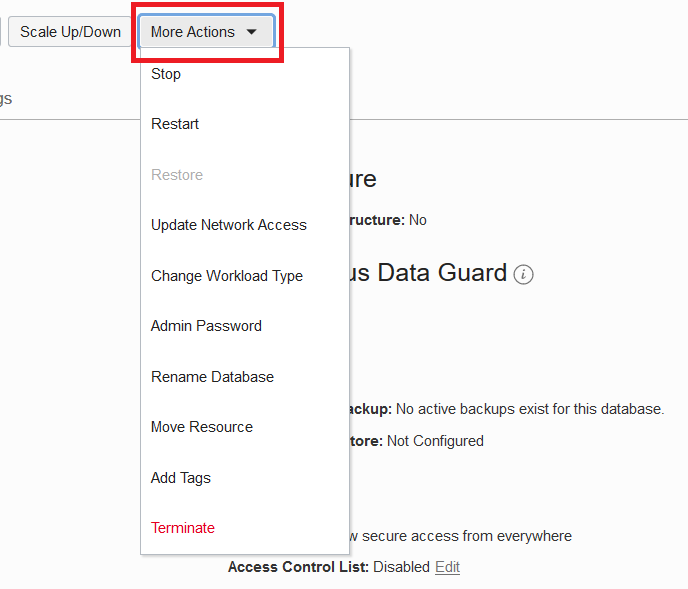

To see a list of instance lifecycle operations that are available, click the More Actions button at the top of this page. Notice how different opertions are enabled or disabled depending on the current running state of your database.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

Ensure that your database has been started (is in Available state) before proceding to the next section. After reviewing the list of lifecycle operations, click somewhere else on the screen to hide it again. There is no need to execute an instance restart at this time.

Back on the database details page, locate the link at APEX Instance > Instance Name, and then click on it. This takes you back to the APEX instance details page where you started.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

First-Time APEX Workspace Setup


Before you start developing APEX apps, you must first create an initial APEX workspace and user account. You can do this using APEX Administration Services. This is the main console for managing APEX workspaces, user accounts, and more. The workspace you will create becomes your main pallet for building and deploying apps. The new user account will serve mulitple purposes: we will use it to sign into the workspace for app development and also use it as an end-user of a running app. While this setup is sufficient for demonstration purposes, in production APEX environments, it is recommended to separate duties into distinct APEX user accounts with minimum privileges.

There are a multiple ways to get to APEX Administration Services. With your APEX Service instance running, proceed by clicking Launch APEX on the instance details page or instance list screen (both pictured below), or by opening the APEX Administration Services link contained in your welcome email. If you recently provisioned or restarted the instance, it is recommended to wait an extra 1-3 minutes before opening APEX Administration Services to ensure that everything related to APEX is running properly.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

Upon entering APEX Administration Services, you will be prompted to sign in using the database administrator acocunt. Enter the ADMIN password you set when creating the APEX Service instance.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

Soon you will see an APEX Administration Services welcome screen that looks like the one below. Review the message text, and click the button to proceed.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

Next, you are prompted for an APEX workspace name, a database user name, and a password. This new workspace will be your shared work area where one or more low-code developers can build and run APEX applications. After you finish this step, an APEX workspace, a database user, and a database schema (with same name as your database user) will be automatically created. Later, when we create an APEX app, it will run against database objects in your schema.

For our example, enter DEMO as the database user name and workspace name. Make sure to remember your password. Click the Create Workspace button to continue.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

Here you see the APEX Administration Services main page. Notice a message at the top indicating your workspace has been created.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

Before you do anything else, bookmark this page in your browser so you have an easy way to open APEX Administration Services in the future with a single click. The bookmark should look something like what is shown below. It also is available in the welcome email that was sent upon creating your APEX Service instance.

https://<db-id>.adb.<data-region>.oraclecloudapps.com/ords/apex_admin

Now we are going to sign out of APEX Administration Services and go to the sign-in page for APEX workspaces, also known as APEX Application Development Services. In the message at the top of your screen, notice it contains a link with the name of your new APEX workspace (in our example, DEMO). Click this link to continue.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

You are signed out of APEX Administration Services and redirected to the APEX workspace sign in page with your workspace name automatically filled in. Enter your workspace password, then click Sign In to continue.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

We now see the APEX Workspace homepage. It gives you easy access to the four main areas of APEX: App Builder, SQL Workshop, Team Development, and App Gallery. App Builder is where you go to create and edit APEX apps. SQL Workshop provides a full database object explorer plus an interface to run SQL queries and see query results. Team Development gives you access to the rich collaborative development features of APEX. App Gallery includes a suite of predefined productivity applications you can install and use. For this tutorial, we will work mainly in App Builder.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

Bookmark this page in your browser so you have an easy way to sign into your APEX workspace in the future with a single click. The bookmark should look something like what is shown below. It also is available in the welcome email that was sent upon creating your APEX Service instance.

https://<db-id>.adb.<data-region>.oraclecloudapps.com/ords/apex

At this point, you can stop and pat yourself on the back because you’ve finished a major milestone. You have an instance of APEX Service running in Oracle Cloud and a shiny new APEX development workspace. Now you are ready to create your very first APEX app!

About Creating APEX Apps


There are several ways to quickly create APEX apps. You can import spreadsheet-type data from a file, adapt an existing app from the APEX App Gallery, or create an app from scratch. APEX App Builder makes all of these options available in a single wizard. In the interest of time, we’re not going to cover all of the options here. We will focus on creating an app from sample data because it is probably the most common way to kickstart a new APEX app.

The reminder of this tutorial is divided into four distinct sections. In Part I, we will launch the app creation wizard and load a sample data set. In Part II, we will finish the wizard and automatically generate an APEX app. In Part III, we will run the app and sign into it. Lastly, in Part IV, we will explore the app, make two small changes, and then re-run it.

Part I: Loading Sample Data


1. From the APEX workspace homepage, click App Builder.

2. Click Create a New App.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

3. Click From a File.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

When creating an application from a file, APEX allows you to upload CSV, XLSX, XML, or JSON files and then build the app based on this data. Alternatively, you can also copy and paste CSV data or use sample data sets that are included with APEX.

4. Within the Load Data dialog, click the Copy and Paste option at the top.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

5. Click the dropdown box that shows a list of sample data sets, and select Project and Tasks. Notice a sample data set is automatically pasted for you into the text area below. From here, you can simply click Next.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

6. Review the parsed data. At the bottom of this page is a sampling of actual table data that will be created in the database.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

7. Set Table Name to PROJECT_TASKS and click Load Data to proceed. You can ignore the prompt to select individual columns because we will be loading all columns (default behavior).

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

After clicking Load Data you will see a spinner until the wizard finishes loading data. Continue to Part II at that point.

Part II: Creating the App


The data loading step has created a new database table and populated it with records from the sample data. Now you can create an APEX app based on this table.

1. In the final Load Data screen, verify that 73 rows have been loaded into the PROJECT_TASKS table, then click Create Application.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

2. In the Create Application page, review the new app pages that will be generated. Click the Edit button for a given page if you want to review details about it.

Click Check All next to Features, and then click Create Application.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

When the wizard finishes creating the app, you will be redirected to the new app’s homepage in App Builder.

Part III: Running the App

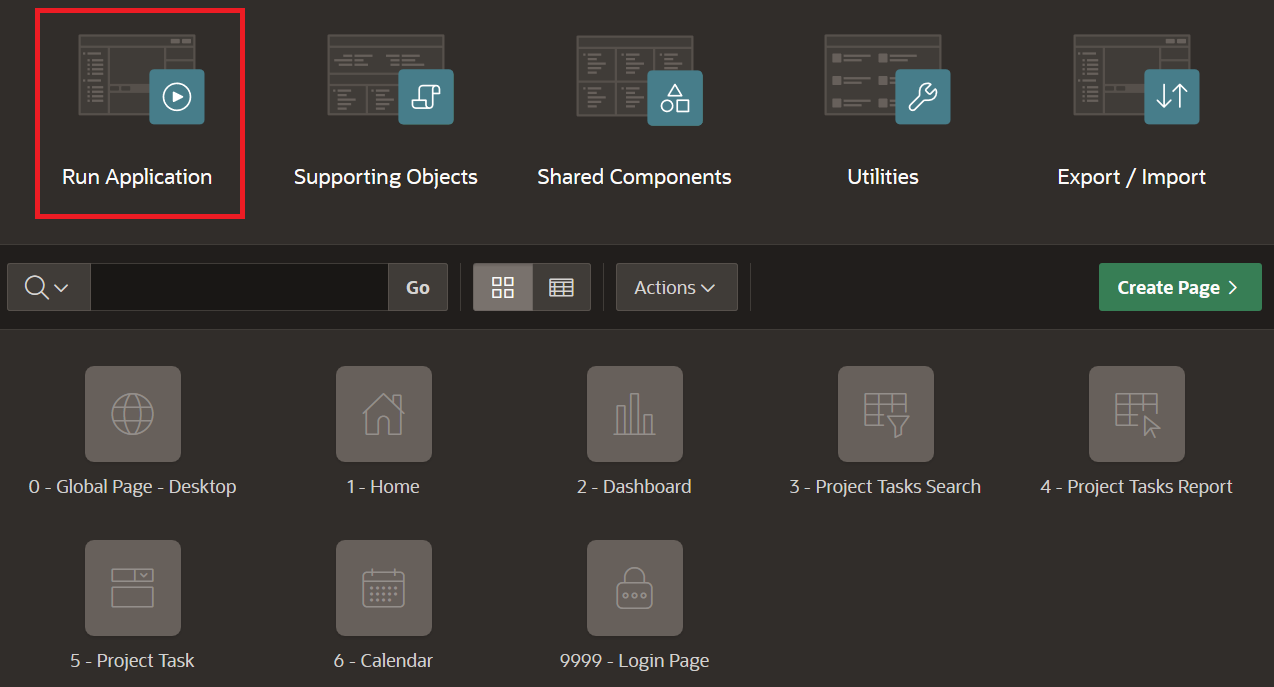

1. Click Run Application. This will open the runtime app in a new browser tab, allowing you to see how end users will view the app.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

2. Enter your user credentials and click Sign In. So far we have created only a single APEX user: the user generated when we created an APEX workspace. Use this same Username and Password now to sign into the app.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

3. Explore the application a little. Click Dashboard (in the home menu or navigation menu) to view charts that were created. Click Project Tasks Search (in the navigation menu) to experiment with faceted searches. Click Project Tasks Report to view an interactive report, then click the Edit icon for a given record to display details in an editable form. Next, navigate to the Calendar page and review the data displayed (you may need to scroll back a few months to see data). Finally, review the options available under Administration.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

Congratulations, you have a live APEX app! This app was generated almost entirely for you by APEX. All you had to do was load pre-packaged sample data and make a few simple settings.

Part IV: Exploring, Changing, and Re-Running the App


In this final section, you will learn how to enhance your app. We will improve the app’s faceted search page for better clarity and improved usability.

Start by reviewing the Project Tasks Search page in this app. See that you can check and uncheck various search facets. When you check a facet, the counts on all remaining facets are updated to show the number of records that meet your search criteria. Note the Status facets, which are commonly used to report on project status, are located down the page instead of at the top. Also, users are allowed to select multiple values for Status, when most likely they will be reporting only one project status at a time. Let’s improve this user experience a bit.

1. From the runtime application, go to the search page by clicking Project Tasks Search. Given you ran this app from the App Builder, a special Developer Toolbar is displayed at the bottom of the screen. Note: end users who log directly into the app will not see this toolbar.

In Developer Toolbar, click Edit Page 3.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

Alternatively, you can also navigate back to App Builder in your browser manually by selecting the appropriate browser tab or window. Once you are in App Builder, click the page 3 - Project Tasks Search.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

You should now be in APEX Page Designer. This is where you will spend the majority of your time improving the application. There are three panes within Page Designer. The left pane displays a hierarchical list of page components called the Rendering Tree. The middle pane displays page Layout (a high-level representation of the rendered page) and Gallery (from which you can drag and drop app components into the Layout). The right pane is the Property Editor, where you can change attributes for a selected component.

2. Status is a very common search criteria, so you want to reorder facets so that Status is higher up in the page between Project and Assigned To.

In the Rendering Tree (left pane), under Search, within Facets, click and hold P3_STATUS. Drag it up until it is immediately under P3_PROJECT, then release the mouse.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

3. Currently the Status facet is a series of checkboxes. However, it is unlikely users will want to select more than one status at a time, so you want to convert this into a radio group.

Continuing with P3_STATUS selected, within the Property Editor (right pane), for Identification > Type, select Radio Group. Scroll down the properties in Property Editor, and for List Entries > Zero Count Entries, select Show Last.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

4. At the top right of the page, click Save and Run Page to save changes made to the facets and review the app.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

5. In the runtime environment, click one of the statuses. See how the counts on other facets are updated based on your selection. Also, notice how you can still select one of the other statuses or click Clear within Status to clear your selection and again show all status counts.

Oracle Database Tutorial and Material, Oracle Database Certification, Oracle Database Exam Prep, DB Tutorial and Material

You have just finished the final part of this tutorial. You implemented a few changes to a live APEX app and then re-ran the app to verify them. Great work!
